M4 Low Loaders
Used to transport heavy loads such as construction equipment and other heavy machinery, low loader trailers are trailers whose body is close to the ground. At Stuart Hext Engineering, we provide trailers in various sizes. (the weight stated is the carrying capacity) Contact us to discuss your requirements or to ask for a free quote.

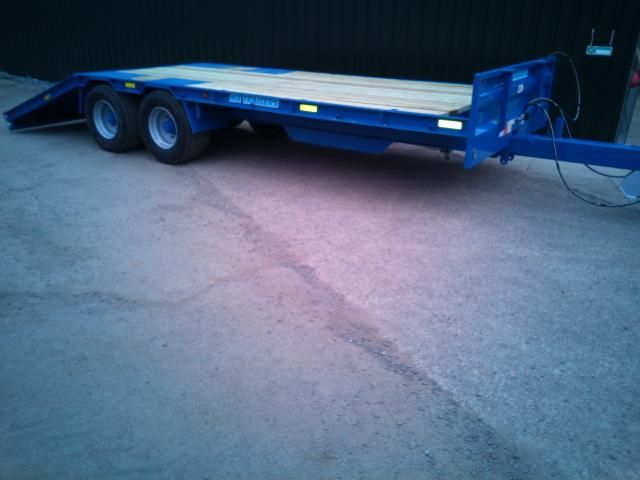

![10 low loader 2](https://www.stuarthextengineering.co.uk/wp-content/uploads/bb-plugin/cache/10-1-landscape.jpg)

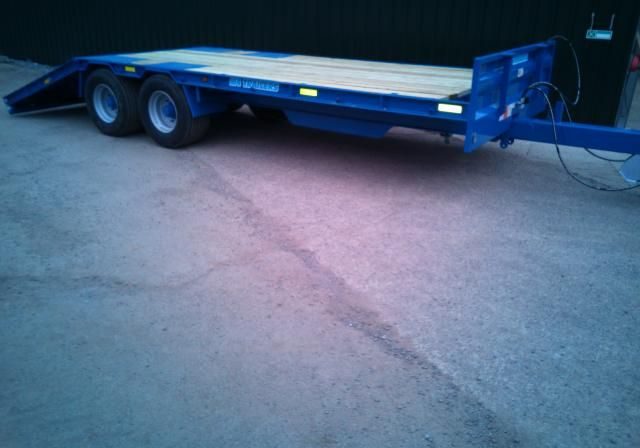

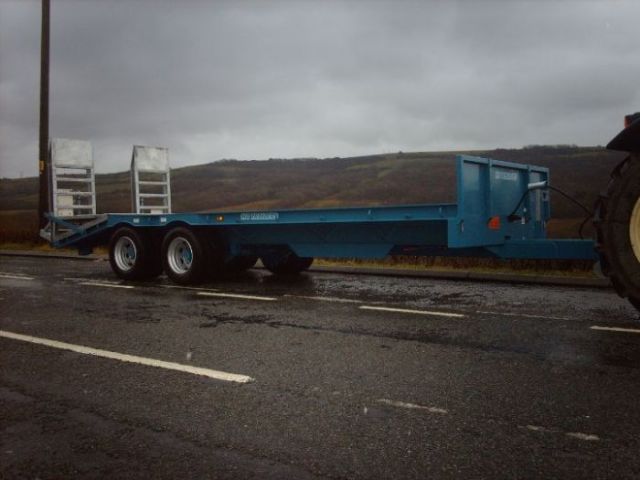

M4 Low loader trailers
Agri low loader in 6, 8 and 10 ton are based on a standard flat trailer design with a beaver tail. This is designed for general wheeled, rubber track or steel track machines but is not too heavy to tow on lighter tractors. Adjustable width ramps on plant low loaders, 8, 10, 12, 14, 16, 22 & 24 tons and an option of hydraulic ramps.
M4 low load trailers are designed to take heavy track machines, especially steel tracks and on a wide range of axles or tyres. All chassis from 8 to 14 tons up to 25' long are in 10" UB and 4 x 2 box section cross members with 6 x 3 side rails and timber 8 x 2 treated wooden floors.
![9tll 9tll](https://www.stuarthextengineering.co.uk/wp-content/uploads/bb-plugin/cache/9tll-landscape.jpg)

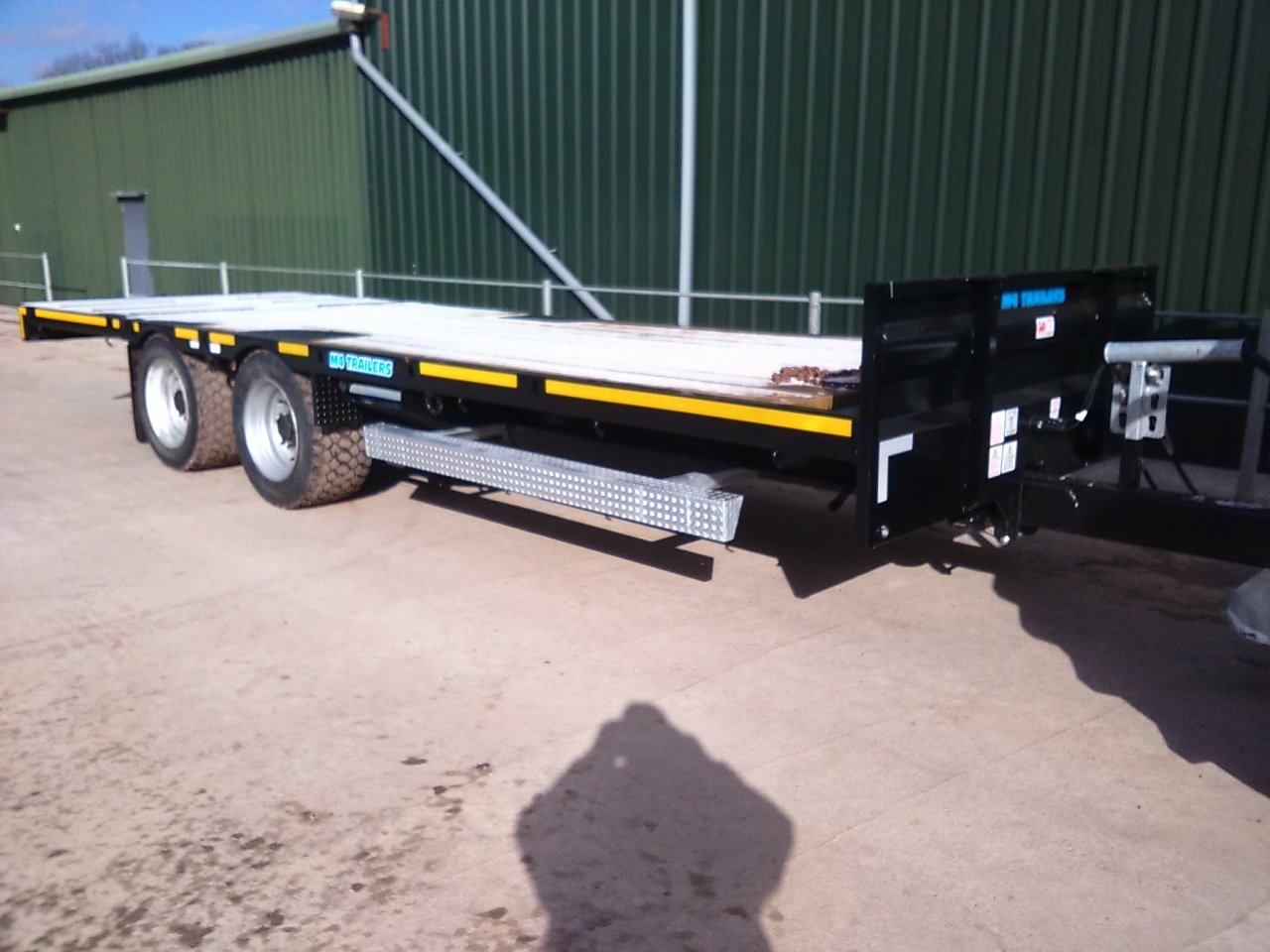

9 ton agri low loader trailer
PART NUMBER: 9TLL
Body length: 18ft, 20ft & 22ft
width: 7ft 6" or 8ft
Axle: 2 x 6 stud
Brakes: 300 x 60
Tyres: 400 x 15.3
![12TLL 12TLL](https://www.stuarthextengineering.co.uk/wp-content/uploads/bb-plugin/cache/12TLL-landscape.jpg)
12 ton plant low loader trailer
PART NUMBER: 12TLL
Body length: 22ft
Body width: 8ft
Axle: 2 x 8 stud
Brakes: 300 x 90
Tyres: 215 x 17.5 twin

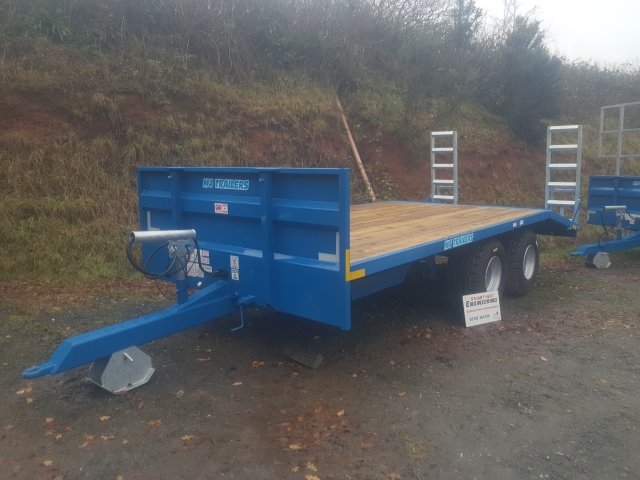

![6 mini low loader](https://www.stuarthextengineering.co.uk/wp-content/uploads/bb-plugin/cache/6-1-landscape.jpg)

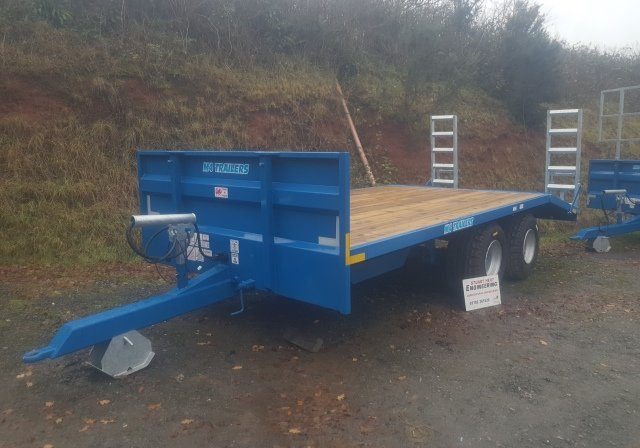

8 ton agri beaver tail low loader trailer
PART NUMBER: 8T
Body length: 18ft or 22ft
Body width: 7ft 6" or 8ft
Axle: 2 x 6 stud
Brakes: 300 x 60
Tyres: 400 x 65 x 15.5
Available in 18ft, 20ft or 22ft

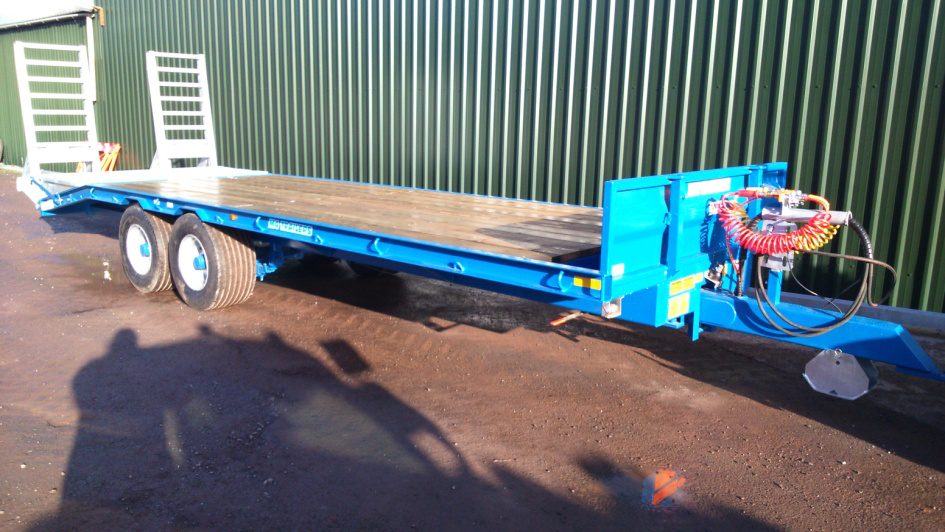

![14t lowloader 14t lowloader](https://www.stuarthextengineering.co.uk/wp-content/uploads/bb-plugin/cache/14t-lowloader-panorama.jpg)

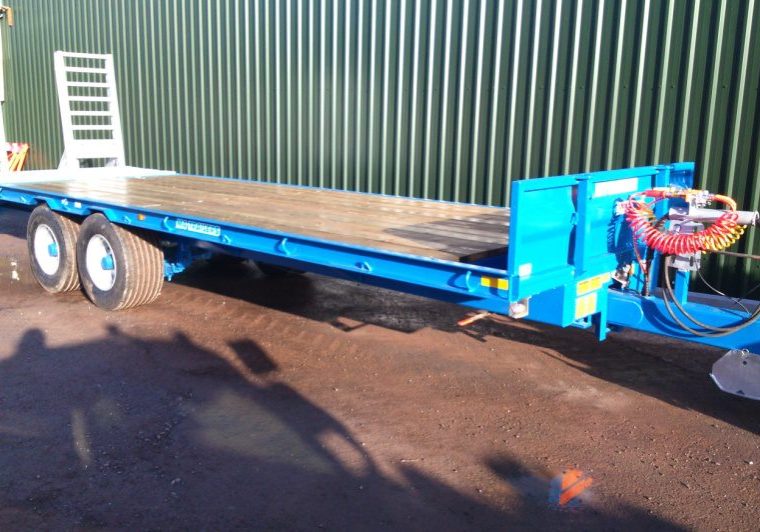

14 ton plant low loader trailer
PART NUMBER: 14TLL
Body length: 22,24,26 and 28ft
Body width: 8ft Axle: 2 x 8 stud
Brakes: 300 x 90 or 300 x 135 comm
Tyres: 215 x 17.5 twin or 445 x 19.5
![8t 8t](https://www.stuarthextengineering.co.uk/wp-content/uploads/bb-plugin/cache/8t-panorama.jpg)

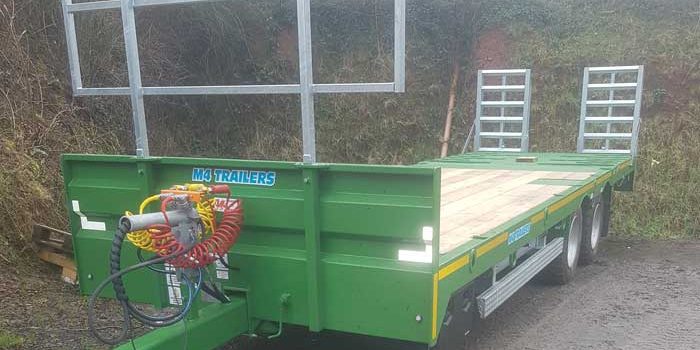

16t-18t CARRYING CAPACITY Hydraulic Beaver Tail
PART NUMBER: 8T
Body length: 26ft -30ft
Strap tray
Full led lights
hydraulic controls at the rear
commercial axles
heavy duty springs
sprung draw bar
front bale rack
option of air brakes

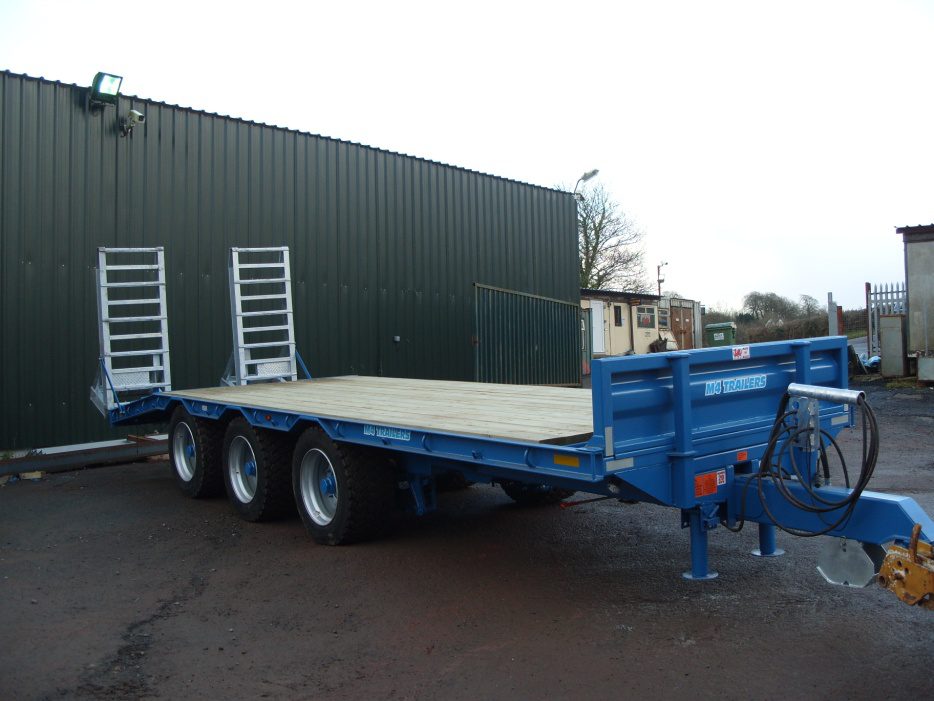

![tri lowloader tri lowloader](https://www.stuarthextengineering.co.uk/wp-content/uploads/bb-plugin/cache/tri-lowloader-landscape.jpg)
TRI AXLE LOW LOADER
PART NUMBER: 22TLL
Starting from 26ft
8ft wide
22ton or 24ton carrying capacity
commercial axles
![black low loader](https://www.stuarthextengineering.co.uk/wp-content/uploads/1.png)
Video
M4 Silage & Grain Trailers
At Stuart Hext Engineering, we supply high standard M4 silage/grain trailers, which are ideal for transporting a range of materials. All our machinery is available at highly competitive prices. Get in touch with us to discuss your requirements or for a free quote.

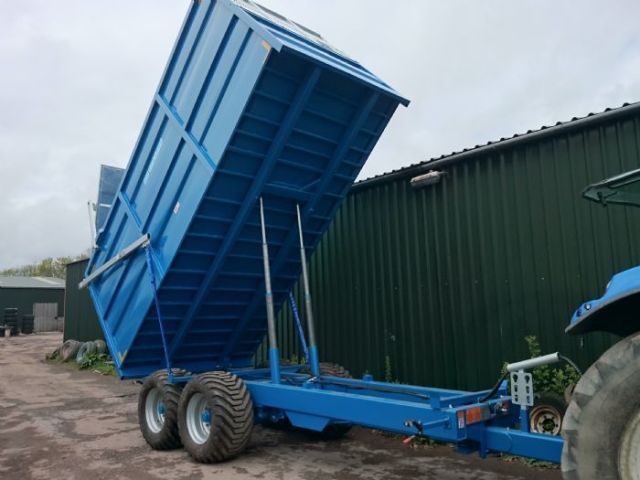

![1 hydraulic tipper](https://www.stuarthextengineering.co.uk/wp-content/uploads/bb-plugin/cache/1-3-landscape.jpg)

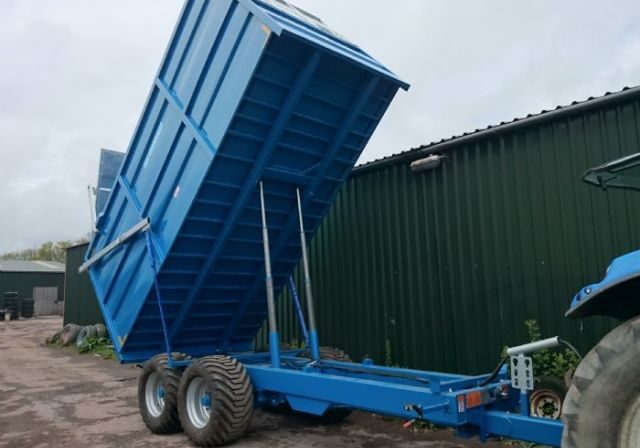

M4 grain & silage trailers
PART NUMBER: GRAIN/SILA
M4 grass and grain trailers are built as standard with box framework with cross members at every 18". All but the 6-ton models are twin ram and come on a spring suspension. Standard 5mm floor and 3mm sides up to 12 ton the 4mm sides for the 14 and 16 ton.
Silage trailer
M4 grass and grain trailers are built as standard with box frame work with cross members at every 18". All but the 6 ton models are twin ram and come on a spring suspension. Standard 5mm floor and 3mm sides up to 12 ton the 4mm sides for the 14 and 16 ton.

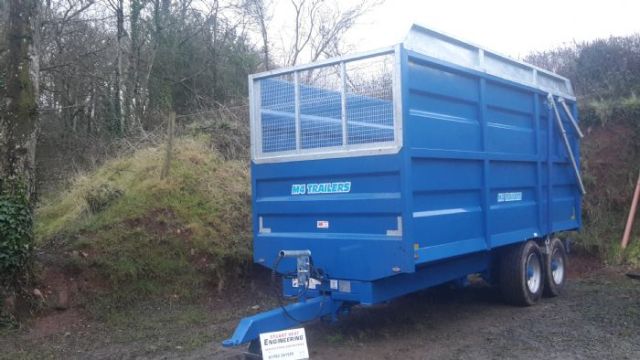

![2 grain silage trailer 5](https://www.stuarthextengineering.co.uk/wp-content/uploads/bb-plugin/cache/2-1-landscape.jpg)
M4 grain & silage trailers
PART NUMBER: GRAIN/SILA
Grain or Silage
6-16 tonne in size
Sprung drawbar option
Tyre options
14 ton in stock
![3 dump trailer 6](https://www.stuarthextengineering.co.uk/wp-content/uploads/bb-plugin/cache/3-3-landscape.jpg)

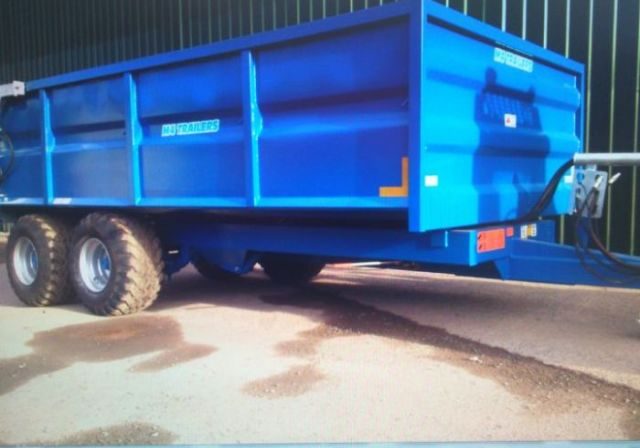

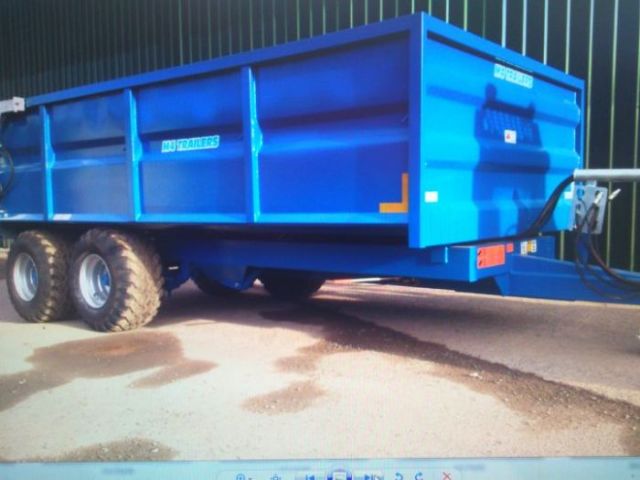

10 ton 14' or 16' x 8' (42" sides) grass and grain trailer
PART NUMBER: 10T
Body length: 14ft or 16ft
Body width: 8ft
Axle: 2 x 6 stud or 2 x 8 stud
Brakes: 300 x 60 or 300 x 90
Tyres: 400 x 15.5 or super singles

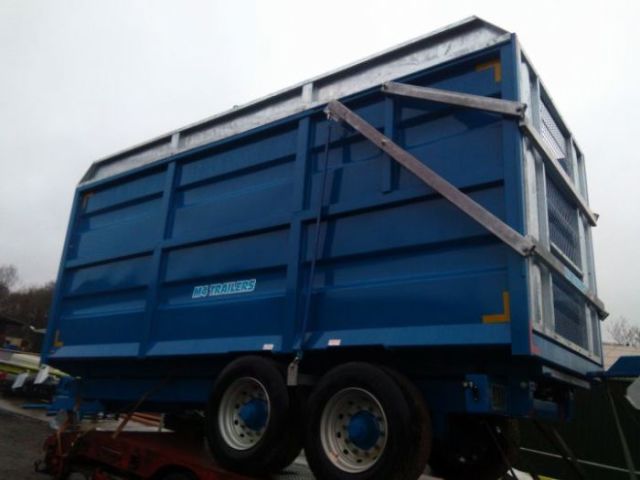

![4 grain silage tipper](https://www.stuarthextengineering.co.uk/wp-content/uploads/bb-plugin/cache/4-3-landscape.jpg)

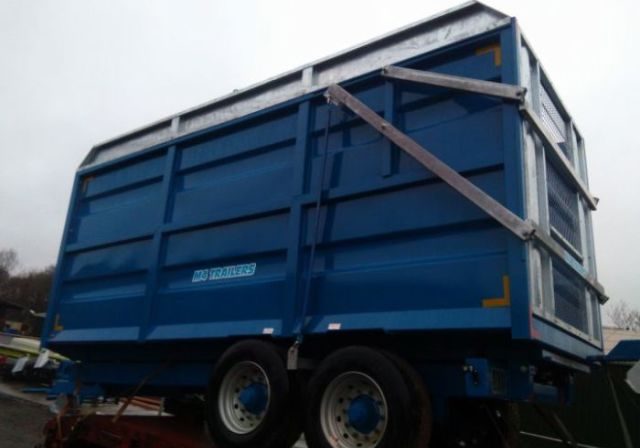

12 ton 16' or 18' x 8' (42" sides) grass and grain trailer
PART NUMBER: 12T
Body length: 16ft
Body width: 8ft
Axle: 2 x 8 stud
Brakes: 400 x 80
Tyres: Super singles or 550 x 45 x 22.5
![14t split side 14t split side](https://www.stuarthextengineering.co.uk/wp-content/uploads/bb-plugin/cache/14t-split-side-landscape.jpg)

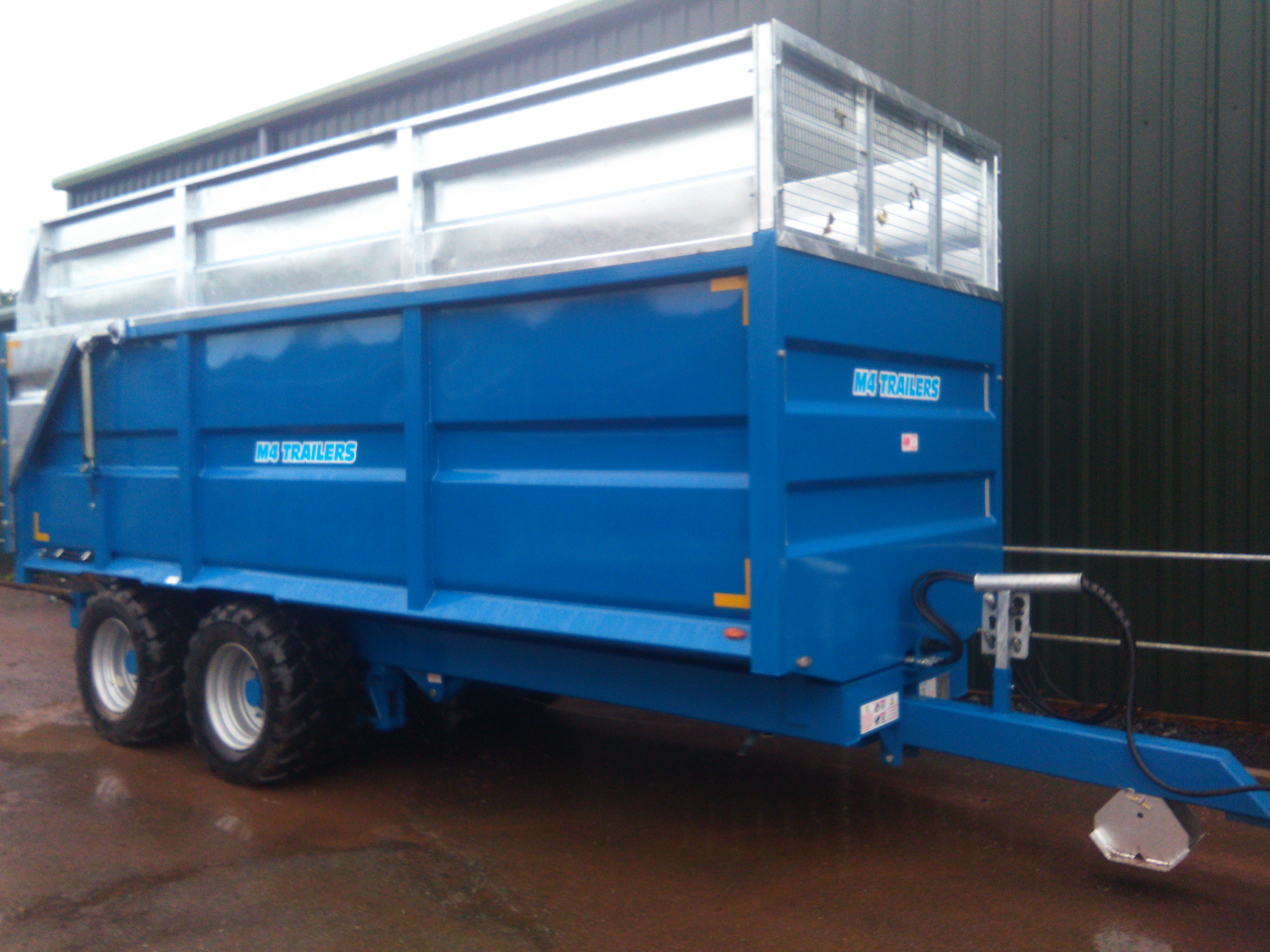

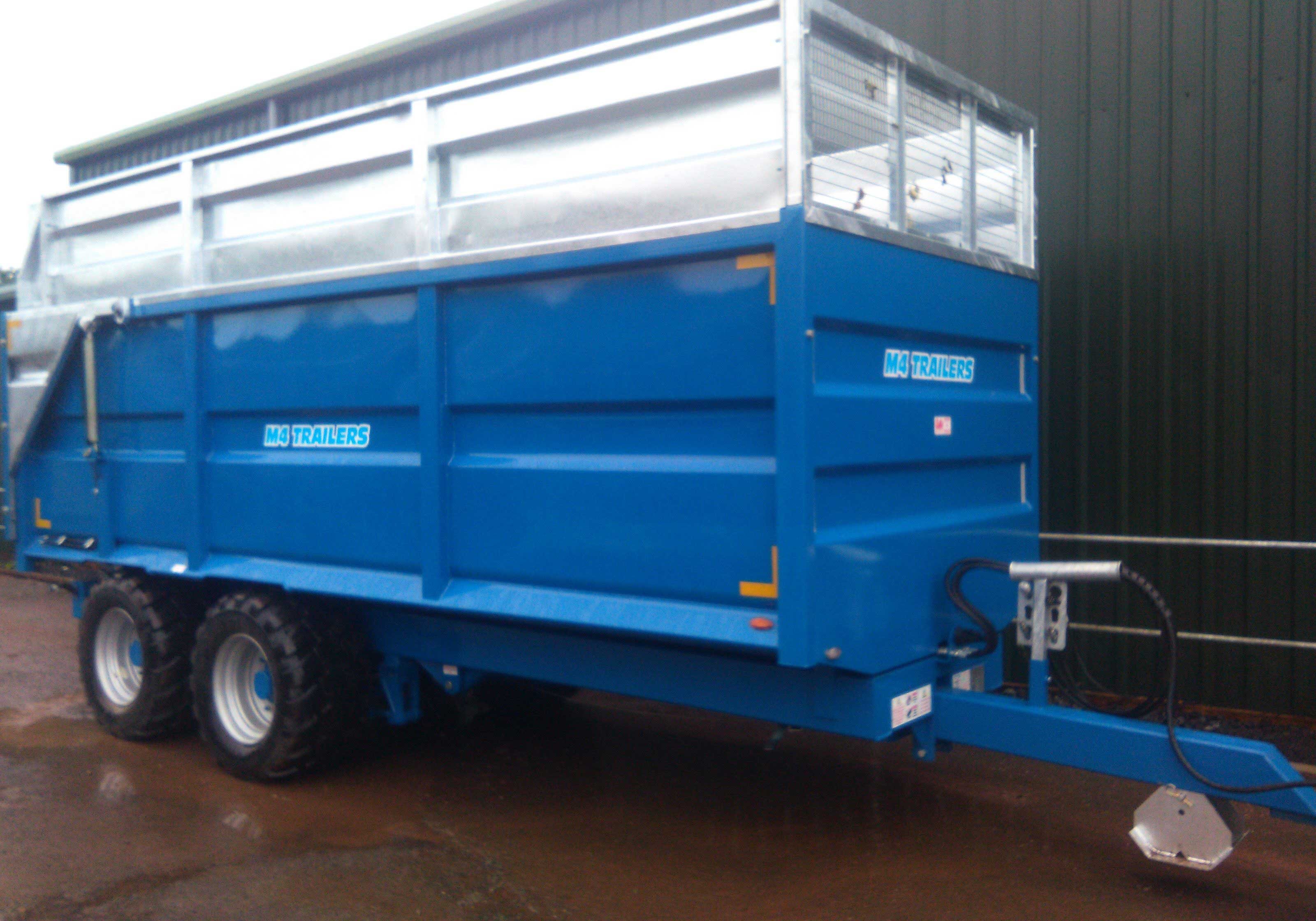

14 ton 16' or 18' x 8' (42" sides) grass and grain trailer
PART NUMBER: 14T
14 ton 18' x 8' x 8' on 385 x 60 x 22.5
Body length: 16ft or 18ft
Body width: 8ft Axle: 2 x 10 stud
Brakes: 405 x 185 comm
Tyres: Super singles or 550 x 45 x 22.5
