M4 Bale & Flat Bed Trailers
You can count on Stuart Hext Engineering to provide you with a high-quality flatbed trailer at a reasonable price. We can obtain the right bale trailers or flatbed trailers to fulfil your particular requirements.
![10tbl 10tbl](https://www.stuarthextengineering.co.uk/wp-content/uploads/10tbl.jpg)
10 ton 22' x 8' flatbed & bale trailer
PART NUMBER: 10T BL
8 ton 22' x 8' flatbed and bale trailer
Body length: 22ft
Body width: 8ft
Axle: 2 x 6 stud
Brakes: 300 x 60
Tyres: 12.5x80x15.3 or 400x15.5
![med_IMG_0529 blue loader](https://www.stuarthextengineering.co.uk/wp-content/uploads/bb-plugin/cache/med_IMG_0529-1-landscape.jpg)

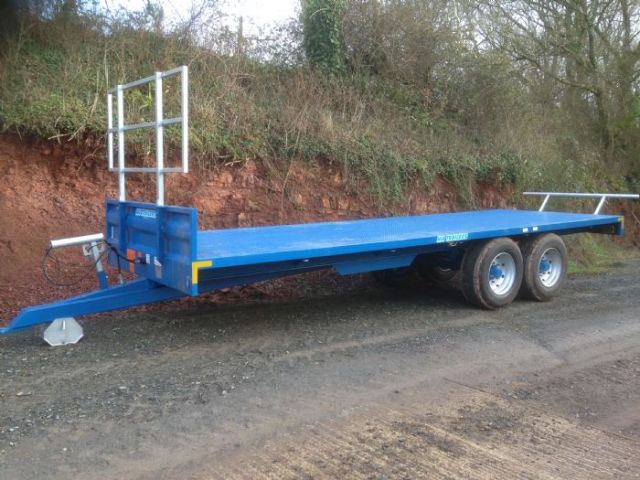

12 ton 26' x 8' flatbed and bale trailer
PART NUMBER: 12T BT
12 ton 26' x 8' flatbed and bale trailer
Body length: 26ft Body width: 8ft
Axle: 2 x 8 stud
Brakes: 350 x 60 or 400 x 80 or 420 x 180 comm
Tyres: Super singles 385 x 65 x 22.5, or 435 x 50 x 19.5 or 560 x 40 x 22.5
available in 24,25,26, ft lengths

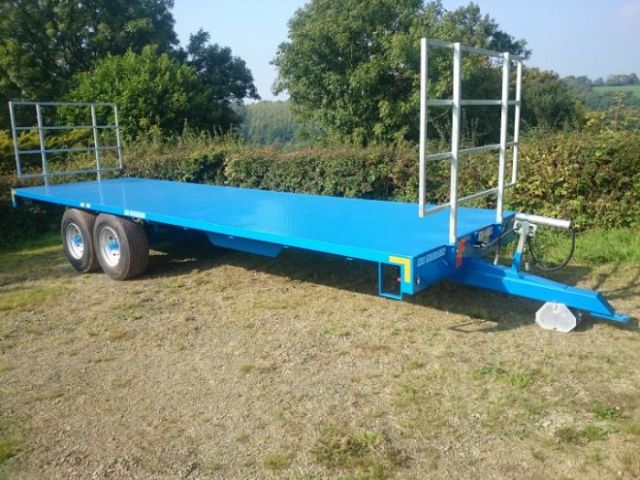

![3 head and rear loader boards](https://www.stuarthextengineering.co.uk/wp-content/uploads/bb-plugin/cache/3-landscape.jpg)
14 ton 28' x 8' flatbed and bale trailer
PART NUMBER: 14T BT
14 ton 28FT OR 26FT' x 8' flatbed and bale trailer
Body length: 28ft
Body width: 8ft
Axle: 2 x 10 stud
Brakes: 400 x 80 or 420 x 180
Tyres: Super singles OR 435X50X19.5

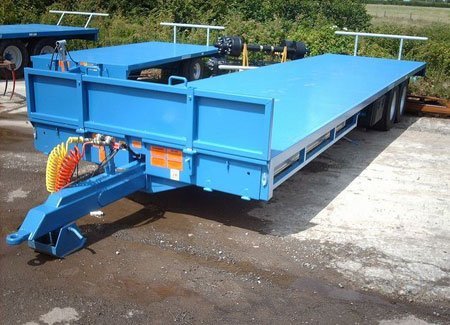

![4 blue laoder](https://www.stuarthextengineering.co.uk/wp-content/uploads/bb-plugin/cache/4-landscape.jpg)
16 ton 30' x 8' flatbed and bale trailer
PART NUMBER: 16T BT 30
14 ton 30' x 8' flatbed and bale trailer
Body length: 30ft
Body width: 8ft
Axle: 2 x 10 stud
Brakes: 420 x 180 comm
Tyres: Super singles or 385 x 22.5 or 435x50x19.5 or560x45x22.5
![bale blue low loader](https://www.stuarthextengineering.co.uk/wp-content/uploads/bb-plugin/cache/bale-landscape.jpg)

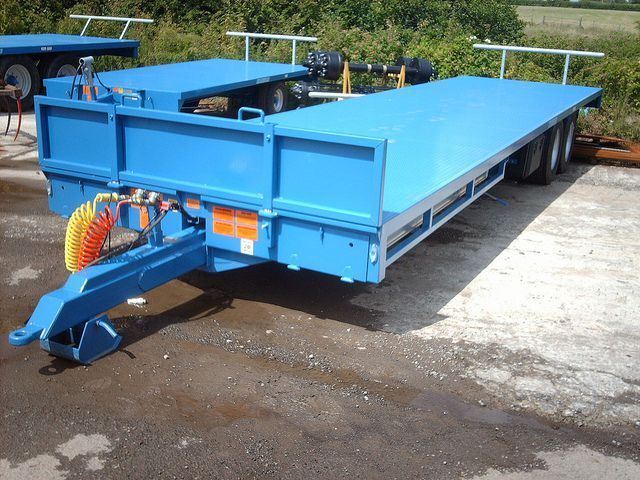

Bale trailer
PART NUMBER: Bale Trailer
All of our flats have standard checker plate floors, box 100 x 50 side rail, box-section cross members, 4 x per plate, fully welded floors, adjustable rear bale bumper, standard bale bumper at the front or optional large rack or headboard with a rack on top.
16mm rope hooks
Lashing rings
LED lights
Flashing beacon
Number plate lights
Spring suspension
![trac tractors hay bales](https://www.stuarthextengineering.co.uk/wp-content/uploads/bb-plugin/cache/trac-landscape.jpg)

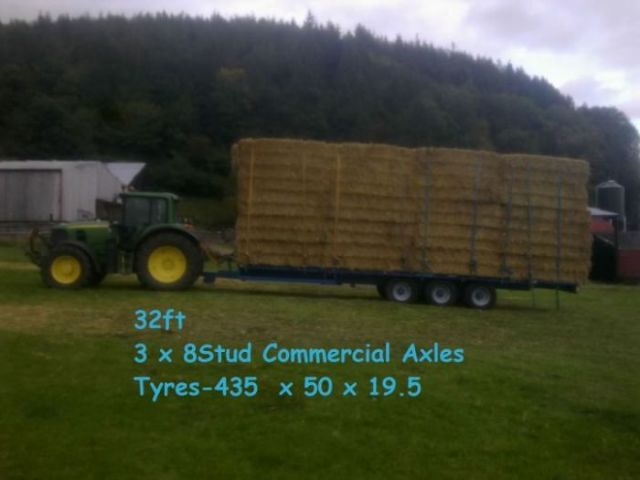

16 ton 32' x 8' flatbed and bale trailer
PART NUMBER: 16T BT
16 ton 32' x 8' flatbed and bale trailer
Body length: 32ft
Body width: 8ft
Axle: 2 x 10 stud
Brakes: 420 x 180 comm
Tyres: Tri axle option
16mm rope hooks
Lashing rings
LED lights
Flashing beacon
Number plate lights
Spring suspension
![blue low loader](https://www.stuarthextengineering.co.uk/wp-content/uploads/3.png)
Video
10 ton 22' x 8' flatbed and bale trailer
PART NUMBER: 10T BT
![options low loader silver head board](https://www.stuarthextengineering.co.uk/wp-content/uploads/bb-plugin/cache/options-landscape.jpg)

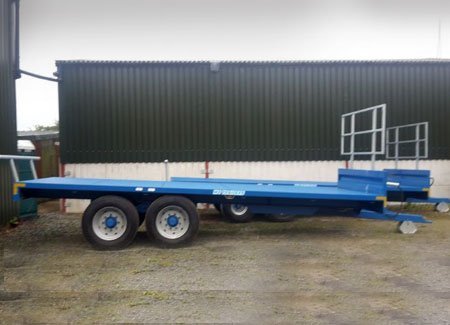

10T 22ft adjustable bale bar
Solid headboard
300x60 brakes
Super singles tyres or 400/65/15.5
Sprung drawn bar
Commercial axels
Air Brakes
Low Profile Tyres
Strap Box
Lengths To Suit Your Job
M4 Stock Boxes

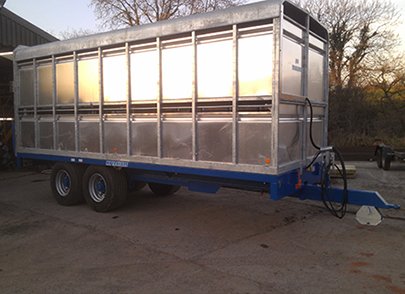

![1 metal cattle trailer](https://www.stuarthextengineering.co.uk/wp-content/uploads/bb-plugin/cache/1-1-landscape.jpg)
22” Detachable box on 435 x 50 x 19.5 tyres
With curved corners.

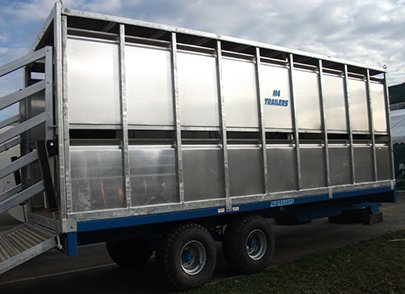

![2 cattle trailer side view 2](https://www.stuarthextengineering.co.uk/wp-content/uploads/bb-plugin/cache/2-landscape.jpg)
22’ detachable box on standard Harvest trailer
With 400 floatation tyres
![3 cattle trailer side view](https://www.stuarthextengineering.co.uk/wp-content/uploads/bb-plugin/cache/3-1-landscape.jpg)

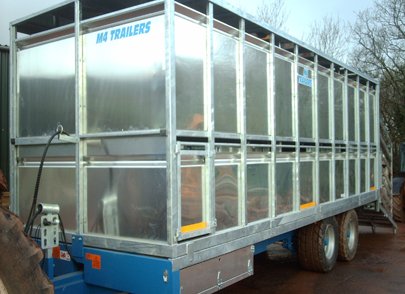

24’ Non detachable on 435 x 50 x 19.5 tyres.
With commercial axles, sprung drawbar & storage box

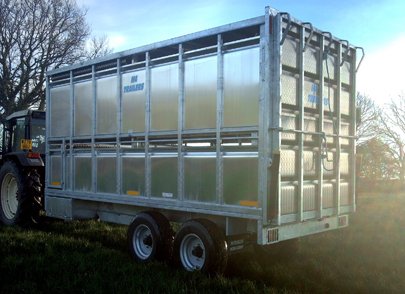

![4 cattle trailer](https://www.stuarthextengineering.co.uk/wp-content/uploads/bb-plugin/cache/4-1-landscape.jpg)
18’ Non detachable Stock box
With radial tyres
Features of Stock Boxes

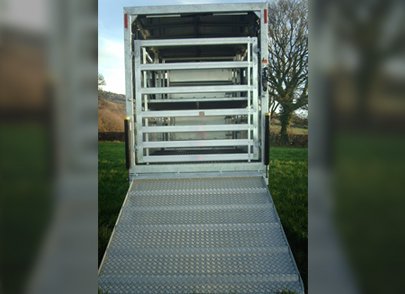

![5 cattle trailer gate](https://www.stuarthextengineering.co.uk/wp-content/uploads/bb-plugin/cache/5-landscape.jpg)
standard gates, 6’ high
![6 cattle trailer ramp](https://www.stuarthextengineering.co.uk/wp-content/uploads/bb-plugin/cache/6-landscape.jpg)
![7 cattle trailer view 5](https://www.stuarthextengineering.co.uk/wp-content/uploads/bb-plugin/cache/7-landscape.jpg)

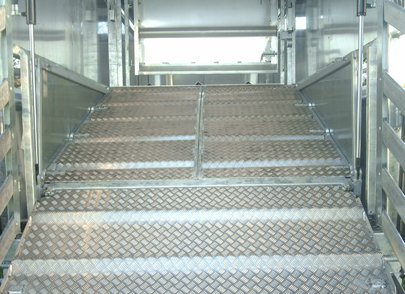

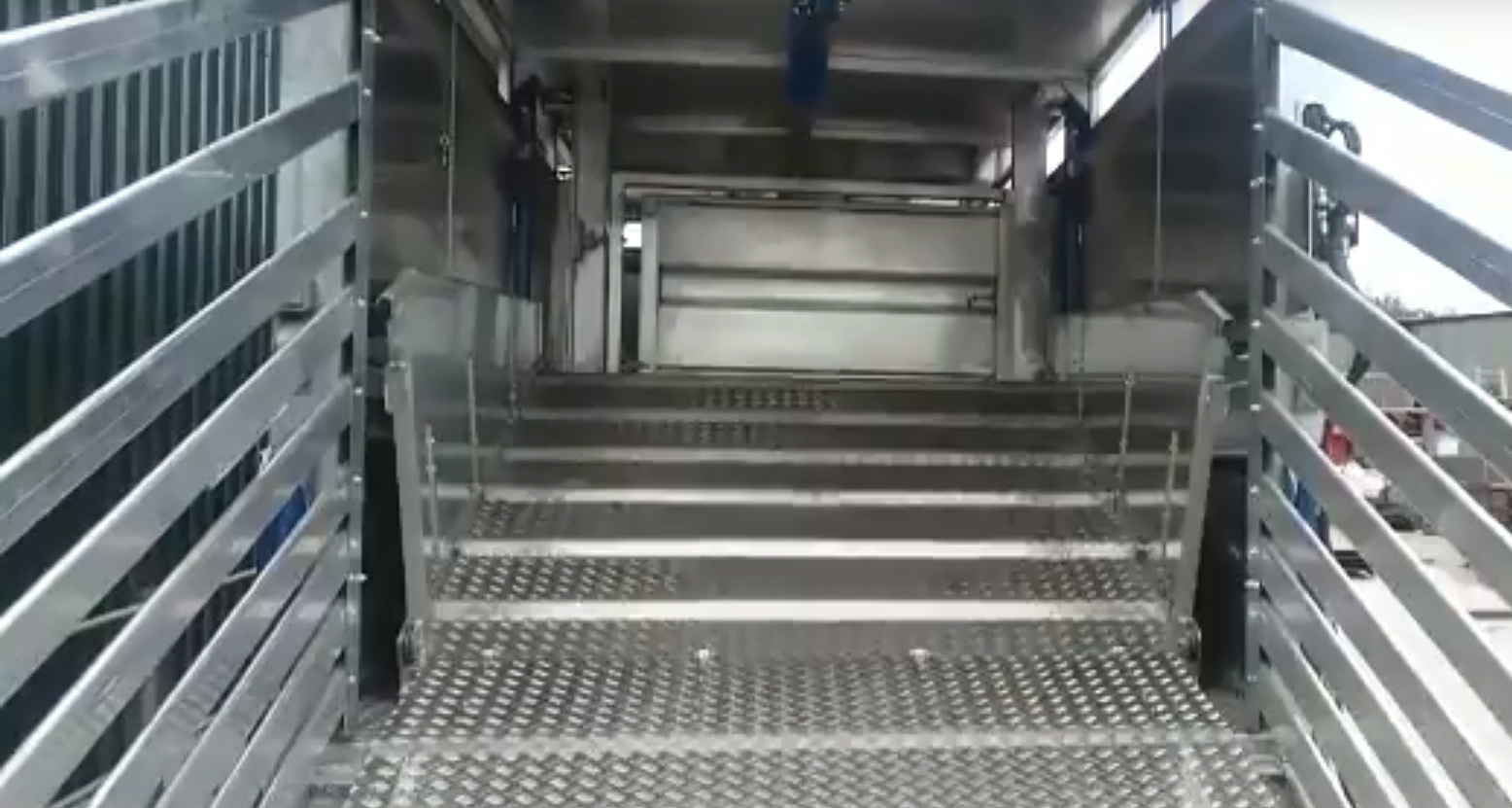

Closer view of sheep ramp and decks with
formed treads for grip and easier cleaning
![8 cattle trailer inside view 3](https://www.stuarthextengineering.co.uk/wp-content/uploads/bb-plugin/cache/8-landscape.jpg)

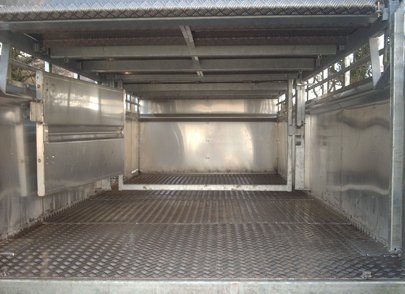

Lower dividing gate, same as upper
dividing gate
![9 cattle trailer inside view 2](https://www.stuarthextengineering.co.uk/wp-content/uploads/bb-plugin/cache/9-landscape.jpg)

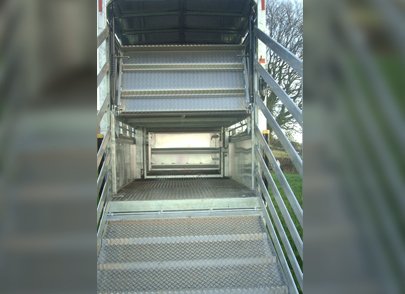

View of hydraulic ramp in upper position
with manual gate ramp closed
![10 cattle trailer inside view](https://www.stuarthextengineering.co.uk/wp-content/uploads/bb-plugin/cache/10-landscape.jpg)
![11 cattle trailer inside](https://www.stuarthextengineering.co.uk/wp-content/uploads/bb-plugin/cache/11-landscape.jpg)

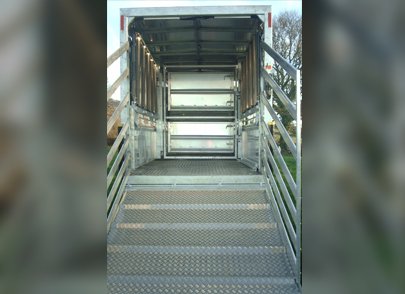

View of partition gate with deck gates
![12 trailer drop door](https://www.stuarthextengineering.co.uk/wp-content/uploads/bb-plugin/cache/12-landscape.jpg)

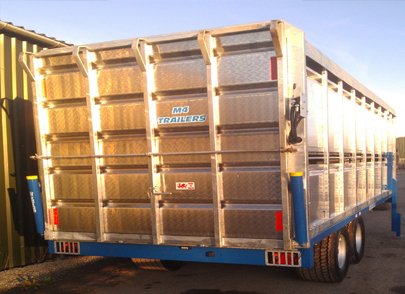

Back gate
![13 trailer latches](https://www.stuarthextengineering.co.uk/wp-content/uploads/bb-plugin/cache/13-landscape.jpg)

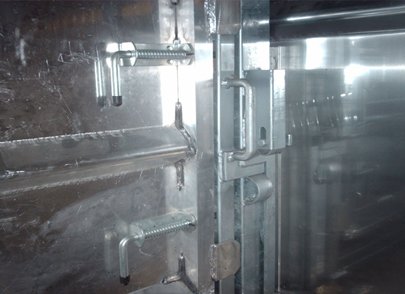

Double latched slam latches on main gate. Facilities for opening on outside. Double 16mm thick spring loaded latch on sheep gates.
![14 cattle trailer](https://www.stuarthextengineering.co.uk/wp-content/uploads/bb-plugin/cache/14-landscape.jpg)

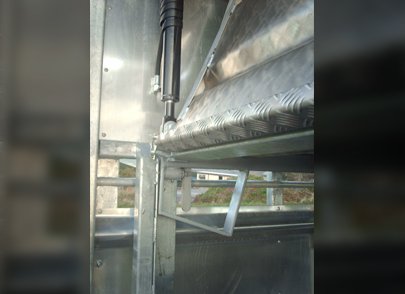

View of hydraulic mechanism with
mechanical safety lock for transportation
![15 trailer side](https://www.stuarthextengineering.co.uk/wp-content/uploads/bb-plugin/cache/15-landscape.jpg)

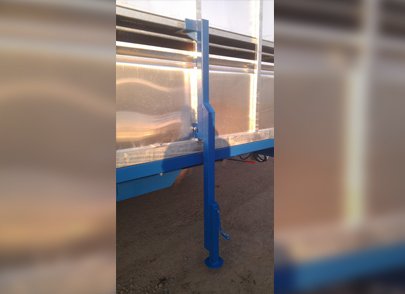

Jack leg for detachable box
![16 rear lights](https://www.stuarthextengineering.co.uk/wp-content/uploads/bb-plugin/cache/16-landscape.jpg)
Optional extra: work lights and
standard rear lights on top back corners
![17 axles](https://www.stuarthextengineering.co.uk/wp-content/uploads/bb-plugin/cache/17-landscape.jpg)
![18 trailer tyres](https://www.stuarthextengineering.co.uk/wp-content/uploads/bb-plugin/cache/18-landscape.jpg)
![19 tyres](https://www.stuarthextengineering.co.uk/wp-content/uploads/bb-plugin/cache/19-landscape.jpg)
Video
![cattle trailer](https://www.stuarthextengineering.co.uk/wp-content/uploads/2.png)
